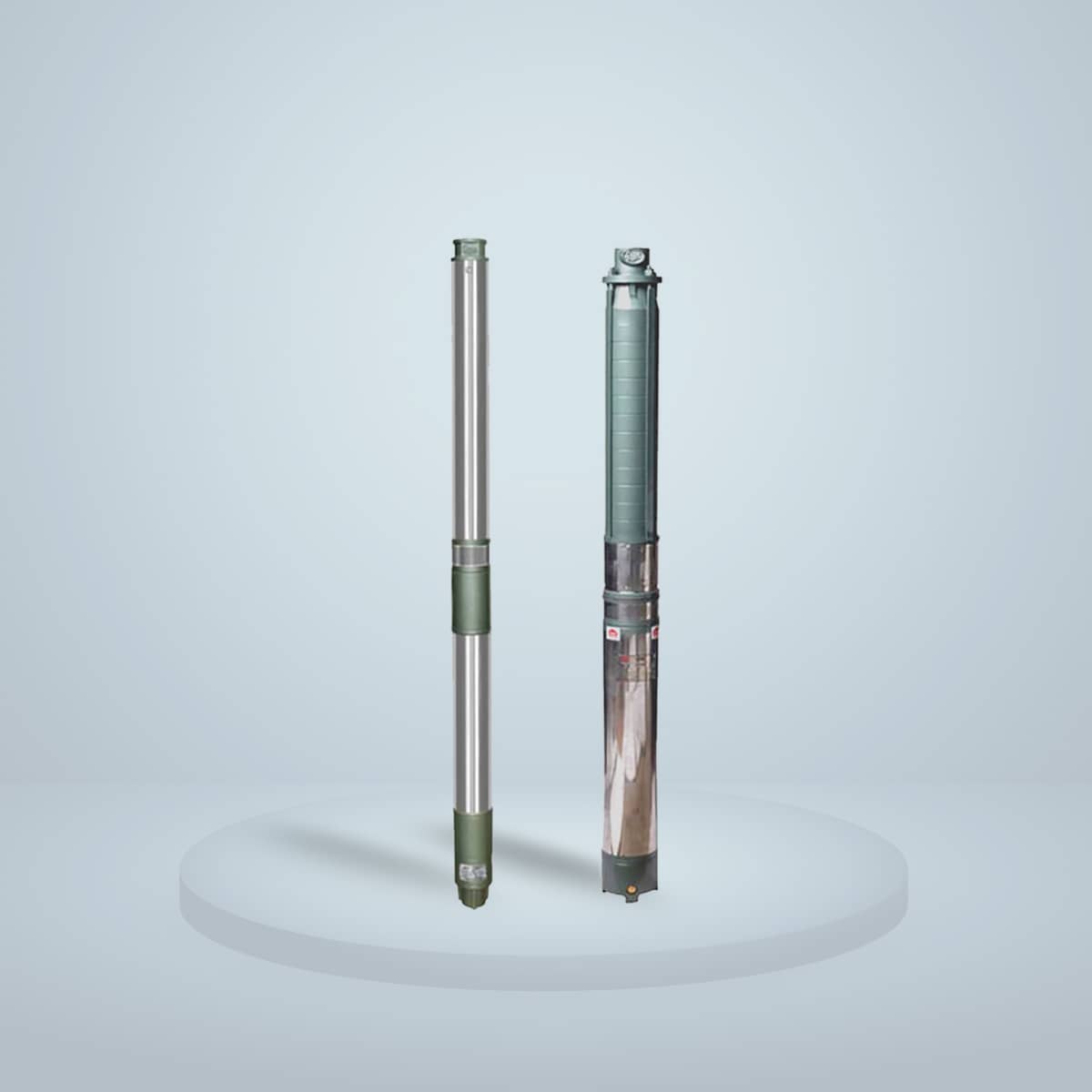

V-4 Submersible Pump
V-6 Submersible Pump SS Body | ||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

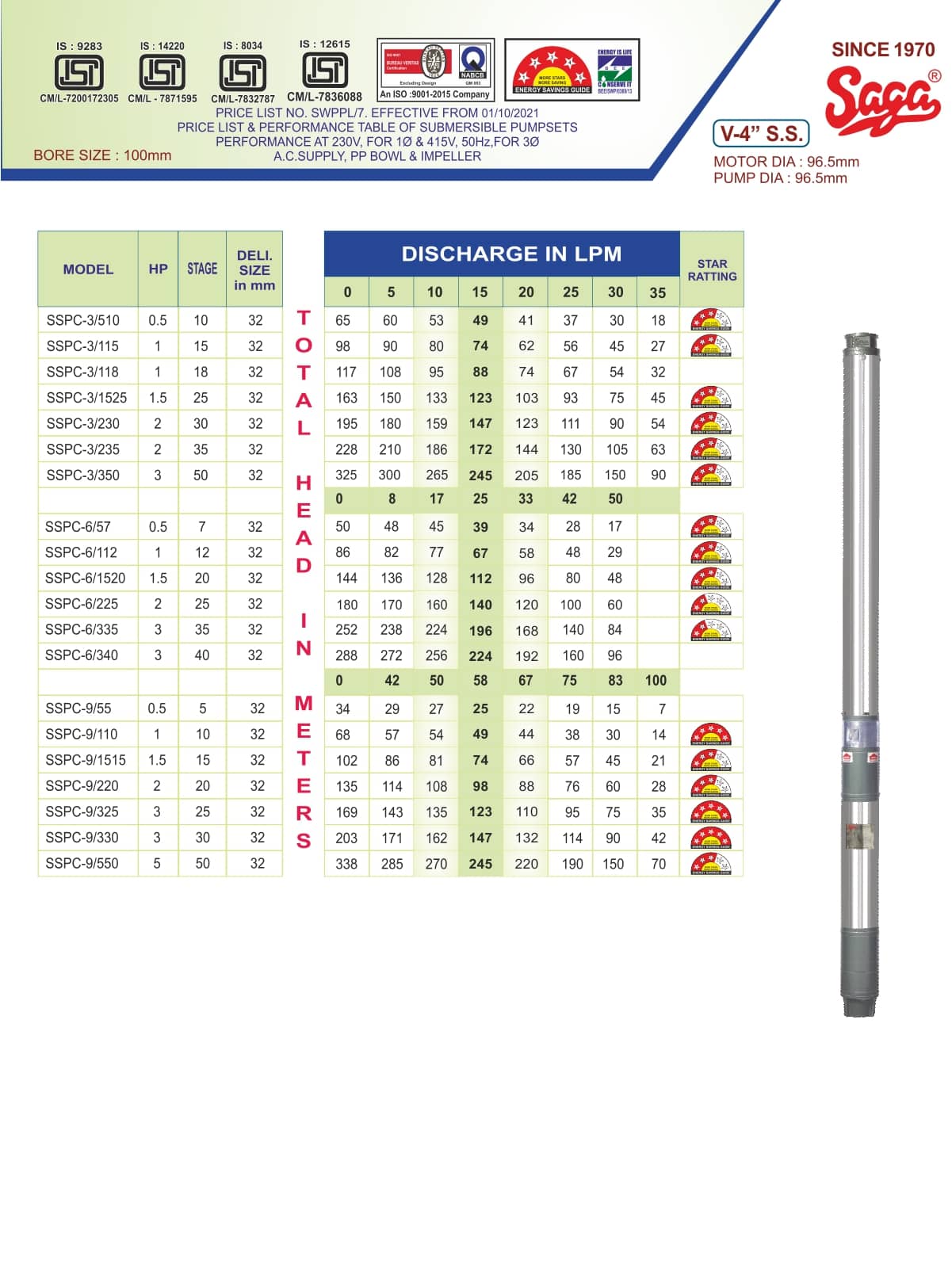

MODEL | HP | STAGE | CONNECTION | T O T A L H E A D I N M E T E R S |
DISCHARGE IN LPM | |||||||||
0 | 5 | 10 | 15 | 20 | 25 | 30 | 35 | |||||||
SSPC -3/510 | 0.5 | 10 | 32 | 65 | 60 | 53 | 49 | 41 | 37 | 30 | 18 | |||
SSPC -3/115 | 1 | 15 | 32 | 98 | 90 | 80 | 74 | 62 | 56 | 45 | 27 | |||
SSPC -3/118 | 1 | 18 | 32 | 117 | 108 | 95 | 88 | 74 | 67 | 54 | 32 | |||
SSPC -3/1525 | 1.5 | 25 | 32 | 163 | 150 | 133 | 123 | 103 | 93 | 75 | 45 | |||
SSPC -3/230 | 2 | 30 | 32 | 195 | 180 | 159 | 147 | 123 | 111 | 90 | 54 | |||
SSPC -3/235 | 2 | 35 | 32 | 228 | 210 | 186 | 172 | 144 | 130 | 105 | 63 | |||
SSPC -3/350 | 3 | 50 | 32 | 325 | 300 | 265 | 245 | 205 | 185 | 150 | 90 | |||
0 | 8 | 17 | 25 | 33 | 42 | 50 | ||||||||
SSPC -6/57 | 0.5 | 7 | 32 | 50 | 48 | 45 | 39 | 34 | 28 | 17 | ||||
SSPC -6/112 | 1 | 12 | 32 | 86 | 82 | 77 | 67 | 58 | 48 | 29 | ||||
SSPC -6/1520 | 1.5 | 20 | 32 | 144 | 136 | 128 | 112 | 96 | 80 | 48 | ||||
SSPC -6/225 | 2 | 25 | 32 | 180 | 170 | 160 | 140 | 120 | 100 | 60 | ||||
SSPC -6/335 | 3 | 35 | 32 | 252 | 238 | 224 | 196 | 168 | 140 | 84 | ||||
SSPC -6/340 | 3 | 40 | 32 | 288 | 272 | 256 | 224 | 192 | 160 | 96 | ||||
0 | 42 | 50 | 58 | 67 | 75 | 83 | 100 | |||||||
SSPC -9/55 | 0.5 | 5 | 32 | 34 | 29 | 27 | 25 | 22 | 19 | 15 | 7 | |||
SSPC -9/110 | 1 | 10 | 32 | 68 | 57 | 54 | 49 | 44 | 38 | 30 | 14 | |||
SSPC -9/1515 | 1.5 | 15 | 32 | 102 | 86 | 81 | 74 | 66 | 57 | 45 | 21 | |||
SSPC -9/220 | 2 | 20 | 32 | 135 | 114 | 108 | 98 | 88 | 76 | 60 | 28 | |||
SSPC -9/325 | 3 | 25 | 32 | 169 | 143 | 135 | 123 | 110 | 95 | 75 | 35 | |||
SSPC -9/330 | 3 | 30 | 32 | 203 | 171 | 162 | 147 | 132 | 114 | 90 | 42 | |||
SSPC -9/550 | 5 | 50 | 32 | 338 | 285 | 270 | 245 | 220 | 190 | 150 | 70 |

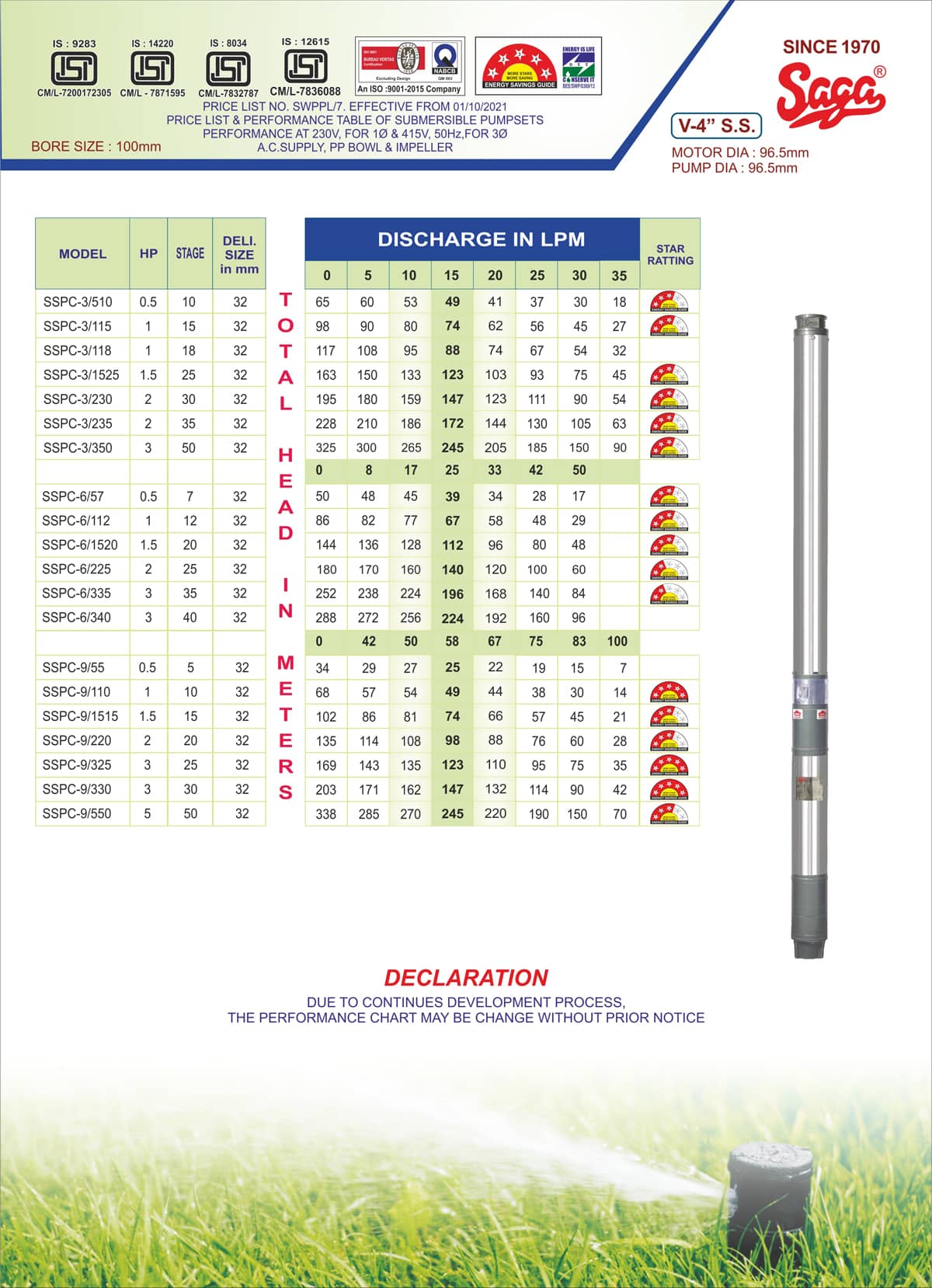

V-4 Submersible Pump SS Body | ||||
---|---|---|---|---|
Model No. | HP | Stage | Discharge LPM | Delivery Size |
SSPC- 3/510 | 0.5 | 10 | 18 to 65 | 32 |
SSPC- 3/115 | 1 | 15 | 27 to 98 | 32 |
SSPC- 3/118 | 1 | 18 | 32 to 117 | 32 |
SSPC- 3/1525 | 1.5 | 25 | 45 to 163 | 32 |
SSPC- 3/230 | 2 | 30 | 54 to 195 | 32 |
SSPC- 3/235 | 2 | 35 | 63 to 228 | 32 |
SSPC- 3/350 | 3 | 50 | 90 to 325 | 32 |
SSPC- 6/57 | 0.5 | 7 | 17 to 50 | 32 |
SSPC- 6/112 | 1 | 12 | 29 to 86 | 32 |
SSPC- 6/1520 | 1.5 | 20 | 48 to 144 | 32 |
SSPC- 6/225 | 2 | 25 | 60 to 180 | 32 |
SSPC- 6/335 | 3 | 35 | 84 to 252 | 32 |
SSPC- 6/340 | 3 | 40 | 96 to 288 | 32 |
SSPC- 9/55 | 0.5 | 5 | 7 to 34 | 32 |
SSPC- 9/110 | 1 | 10 | 14 to 68 | 32 |
SSPC- 9/1515 | 1.5 | 15 | 21 to 102 | 32 |
SSPC- 9/220 | 2 | 20 | 28 to 135 | 32 |
SSPC- 9/325 | 3 | 25 | 35 to 169 | 32 |
SSPC- 9/330 | 3 | 30 | 42 to 203 | 32 |
SSPC- 9/550 | 5 | 50 | 70 to 338 | 32 |

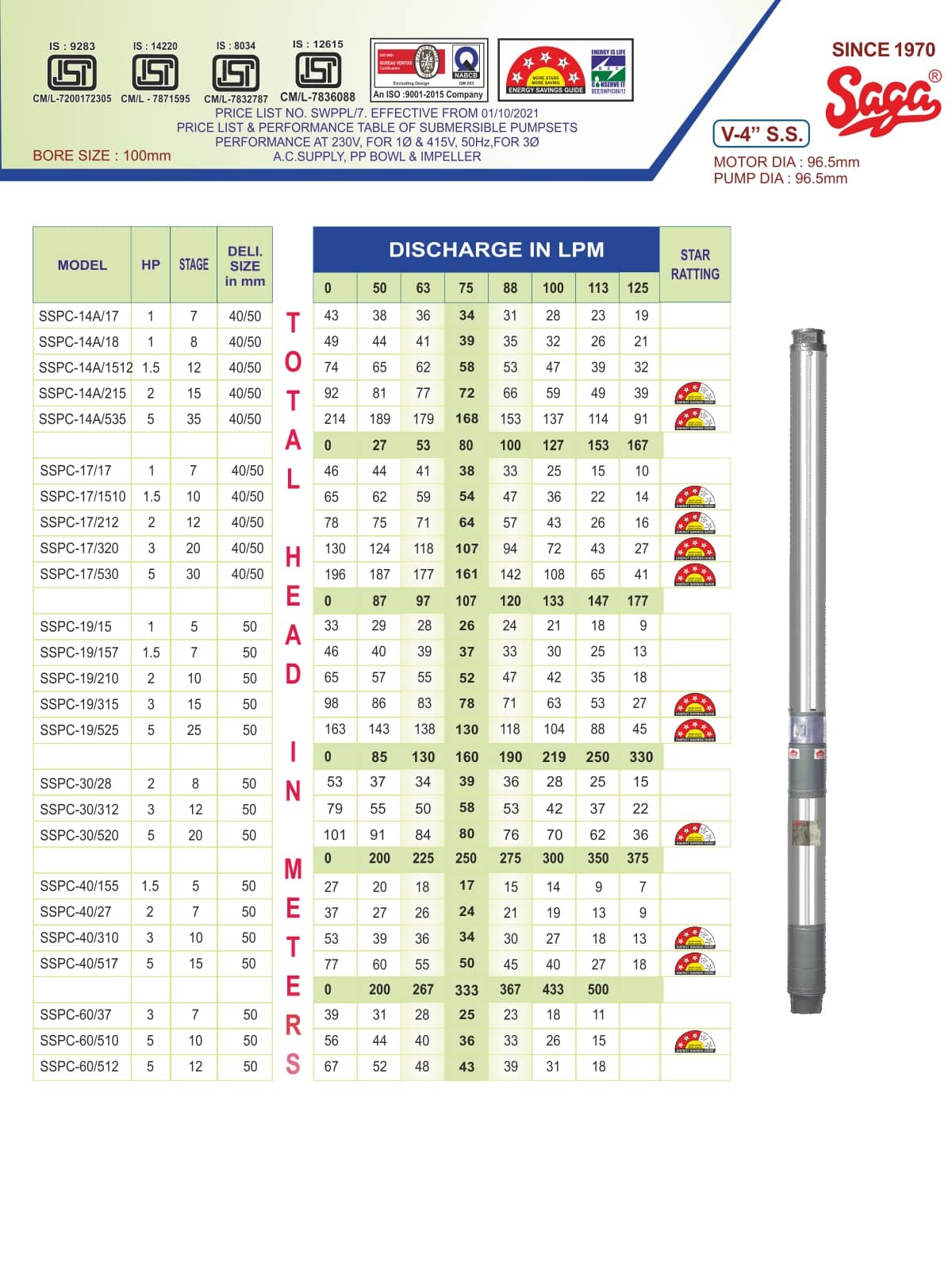

SSPC- 14A/17 | 1 | 7 | 19 to 43 | 40/50 |
SSPC- 14A/18 | 1 | 8 | 21 to 49 | 40/50 |
SSPC- 14A/1512 | 1.5 | 12 | 32 to 74 | 40/50 |
SSPC- 14A/215 | 2 | 15 | 39 to 92 | 40/50 |
SSPC- 14A/535 | 5 | 35 | 91 to 214 | 40/50 |
SSPC- 17/17 | 1 | 7 | 10 to 46 | 40/50 |
SSPC- 17/1510 | 1.5 | 10 | 14 to 65 | 40/50 |
SSPC- 17/212 | 2 | 12 | 16 to 78 | 40/50 |
SSPC- 17/320 | 3 | 20 | 27 to 130 | 40/50 |
SSPC- 17/530 | 5 | 30 | 41 to 196 | 40/50 |
SSPC- 19/15 | 1 | 5 | 9 to 33 | 50 |
SSPC- 19/157 | 1.5 | 7 | 13 to 46 | 50 |
SSPC- 19/210 | 2 | 10 | 18 to 65 | 50 |
SSPC- 19/315 | 3 | 15 | 27 to 98 | 50 |
SSPC- 19/525 | 5 | 25 | 45 to 163 | 50 |
SSPC- 30/28 | 2 | 8 | 15 to 53 | 50 |
SSPC- 30/312 | 3 | 12 | 22 to 79 | 50 |
SSPC- 30/520 | 5 | 20 | 36 to 101 | 50 |
SSPC- 40/155 | 1.5 | 5 | 7 to 27 | 50 |
SSPC- 40/27 | 2 | 7 | 9 to 37 | 50 |
SSPC- 40/310 | 3 | 10 | 13 to 53 | 50 |
SSPC- 40/517 | 5 | 15 | 18 to 77 | 50 |
SSPC- 60/37 | 3 | 7 | 11 to 39 | 50 |
SSPC- 60/510 | 5 | 10 | 15 to 56 | 50 |
SSPC- 60/512 | 5 | 12 | 18 to 67 | 50 |
