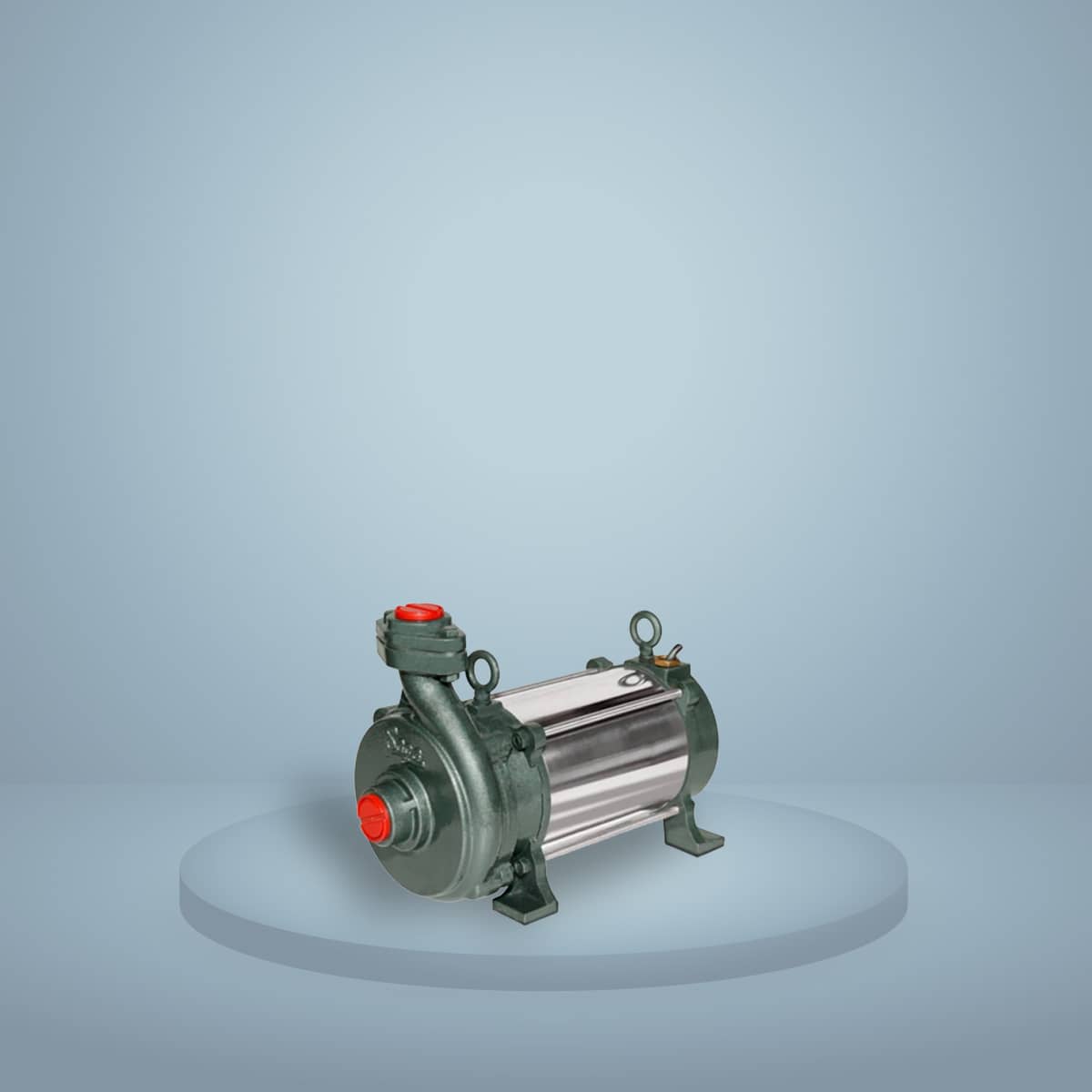

OPEN WELL PUMP

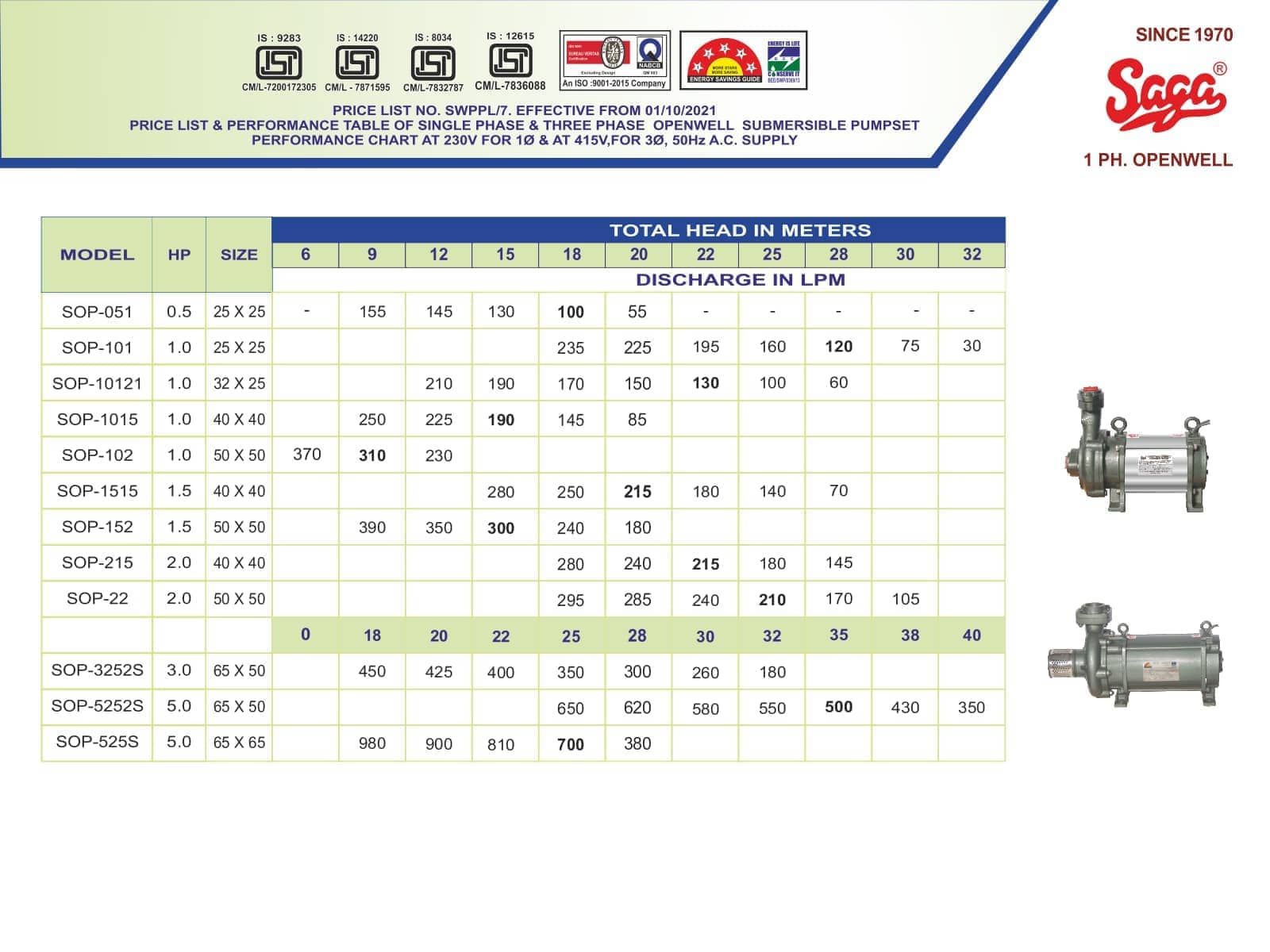

V-6 Submersible Pump SS Body
MODEL HP SIZE TOTAL HEAD IN METERS
6 9 12 15 18 20 22 25 28 30 32
DISCHARGE IN LPM
SOP -051 0.5 25X 25 - 155 145 130 100 55 - - - - -
SOP -101 1.0 25X 25 - - - - 235 225 195 160 120 75 30
SOP -10121 1.0 32X 25 - - 210 190 170 150 130 100 60 - -
SOP -1015 1.0 40X 40 - 250 225 190 145 85 - - - - -
SOP -102 1.0 50X 50 370 310 230 - - - - - - - -
SOP -1515 1.5 40X 40 - - - 280 250 215 180 140 70 - -
SOP -152 1.5 50X 50 - 390 350 300 240 180 - - - - -
SOP -215 2.0 40X 40 - - - 280 240 215 180 145 - -
SOP -22 2.0 50X 50 - - - - 295 285 240 210 170 105 -
0 18 20 22 25 28 30 32 35 38 40
SOP -3252S 3.0 65X 50 - 450 425 400 350 300 260 180 - - -
SOP -5252S 5.0 65X 50 - - - - 650 620 580 550 500 430 350
SOP -525S 5.0 65X 65 - 980 900 810 700 380 - - - - -

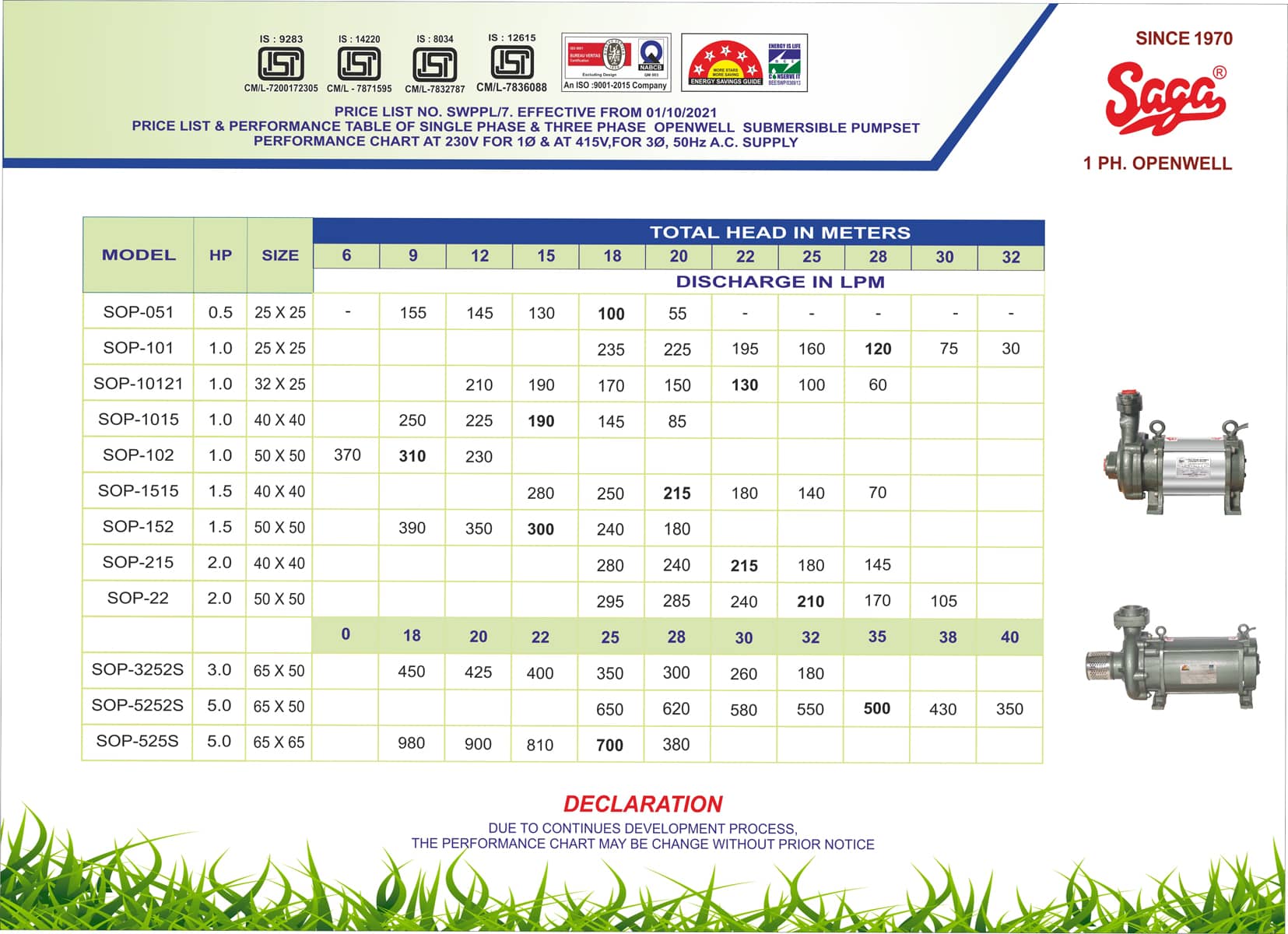

Single Phase - Openwell
Model HP Size Discharge in LPM
SOP-051 0.5 25X25 upto 155
SOP-101 1 25X25 upto 235
SOP-10121 1 32X25 upto 210
SOP-1015 1 40X40 upto 250
SOP-102 1 50X50 upto 370
SOP-1515 1.5 40X40 upto 280
SOP-152 1.5 50X50 upto 390
SOP-215 2 40X40 upto 280
SOP-22 2 50X50 upto 295
SOP-3252 S 3 65X50 upto 450
SOP-5252 S 5 65X50 upto 650
SOP-525 S 5 65X65 upto 980

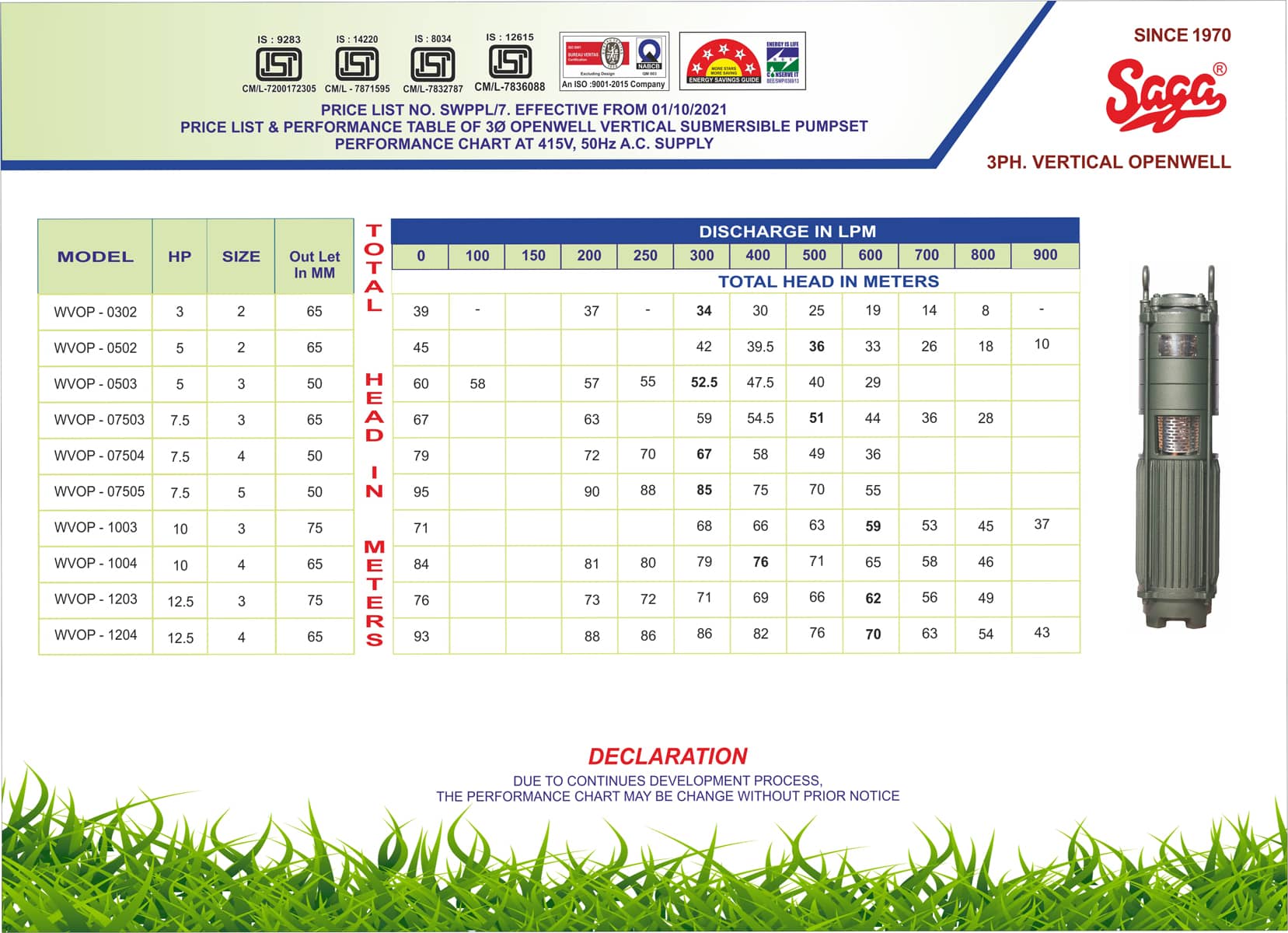

V-6 Submersible Pump SS Body
MODEL HP SIZE Out Let In MM T
O
T
A
L

H
E
A
D

I
N

M
E
T
E
R
S		 DISCHARGE IN LPM
0 100 150 200 250 300 400 500 600 700 800 900
TOTAL HEAD IN METERS
WVOP -0302 3 2 65 39 - - 37 - 34 30 25 19 14 8 -
WVOP -0502 5 2 65 45 - - - - 42 39.5 36 33 26 18 10
WVOP -0503 5 3 50 60 58 - 57 55 52.5 47.5 40 29 - - -
WVOP -07503 7.5 3 65 67 - - 63 - 59 54.5 51 44 36 28 -
WVOP -07504 7.5 4 50 79 - - 72 70 67 58 49 36 - - -
WVOP -07505 7.5 5 50 95 - - 90 88 85 75 70 55 - - -
WVOP -1003 10 3 75 71 - - - - 68 66 63 59 53 45 37
WVOP -1004 10 4 65 84 - - 81 80 79 76 71 65 58 46 -
WVOP -1203 12.5 3 75 76 - - 73 72 71 69 66 62 56 49 -
WVOP -1204 12.5 4 65 93 - - 88 86 86 82 76 70 63 54 43

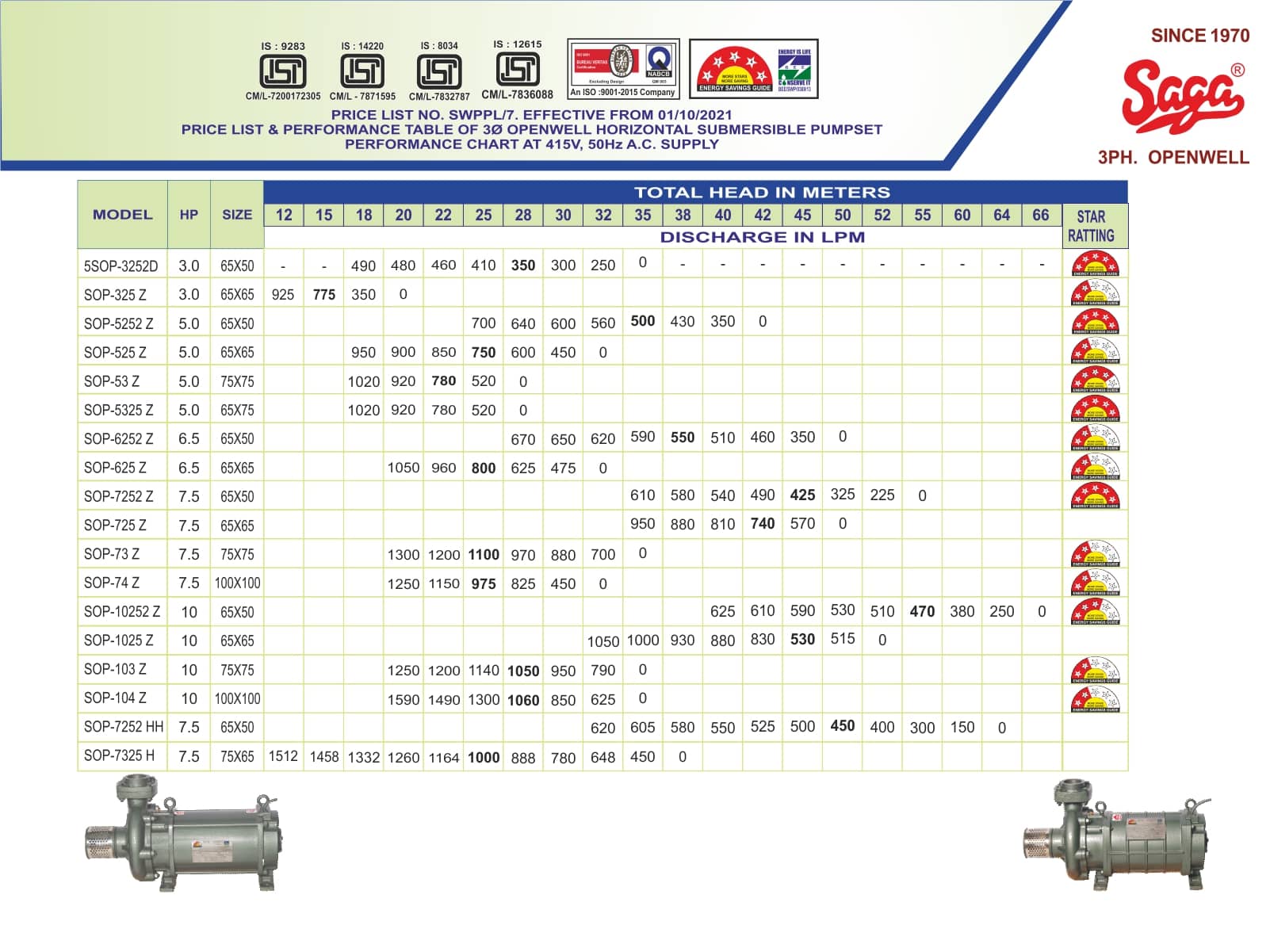

3 Phase - Openwell
Model HP Size Discharge in LPM
5SOP- 3252D 3 65 x 50 upto 490
SOP- 325Z 32 65 x 65 upto 925
SOP- 5252Z 5 65 x 50 upto 700
SOP- 525Z 5 65 x 65 upto 950
SOP- 53Z 5 75 x 75 upto 1020
SOP- 5325Z 5 65 x 75 upto 1020
SOP- 6252Z 6.5 65 x 50 upto 670
SOP- 625Z 6.5 65 x 65 upto 1050
SOP- 7252Z 7.5 65 x 50 upto 610
SOP- 725Z 7.5 65 x 65 upto 950
SOP- 73Z 7.5 75 x 75 upto 1300
SOP- 74Z 7.5 100 x 100 upto 1250
SOP- 10252Z 10 65 x 50 upto 625
SOP- 1025Z 10 65 x 65 upto 1050
SOP- 103Z 10 75 x 75 upto 1250
SOP- 104Z 10 100 x 100 upto 1590
SOP- 7252Z 7.5 65 x 50 upto 620
SOP- 7325Z 7.5 75 x 65 upto 1512
